Lake Ice Classification from Sentinel-1, 2015-2017, Mackenzie Delta, Beaufort Sea Region (CA)

Duguay, Claude R.; Wang, Junqian

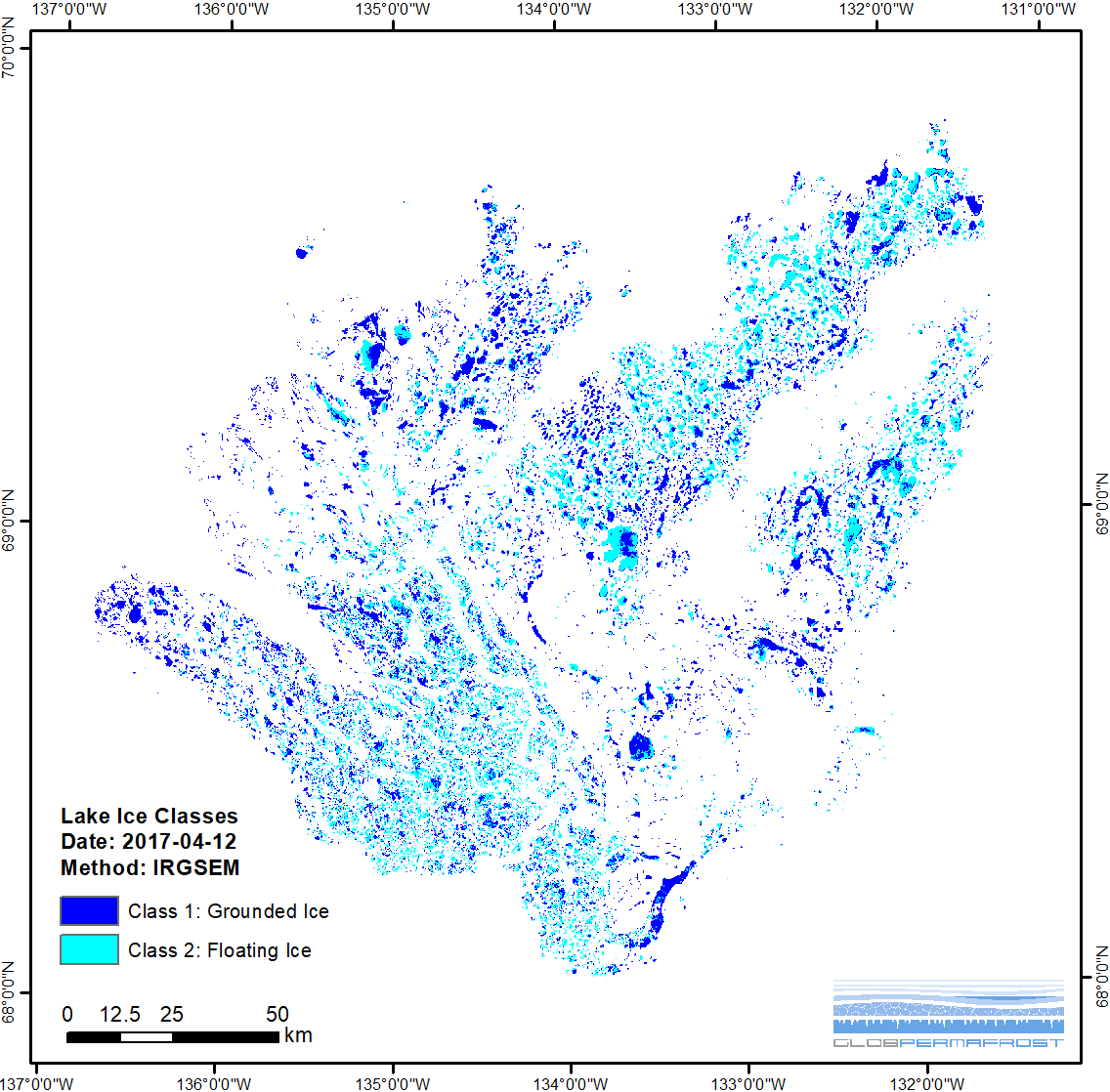

Weekly lake ice classifications distinguish grounded ice and floating ice in lakes based on Sentinel-1A and Sentinel-1B synthetic aperture radar time-series with a resolution of 19 m in mid to late April, 2015 & 2017. Three versions of the product are provided using three different algorithms: 1) image thresholding (THRESH), 2) unsupervised image segmentation using K-means classification (KMEANS), and 3) unsupervised image segmentation using the Iterative Region Growing with Semantics (IRGSEM) algorithm. All version contain two classes: grounded ice (CLASS 1) and floating ice (CLASS 2).

More information about image processing and classification can be found in the product guide.


In order to use these data, you must cite this data set with the following citation:


Duguay, Claude R.

Metadata Access

DCAT in RDF/XML-Format

DCAT in Turtle-Format

DCAT in JSON-LD-Format

APGC Dataset Metadata in JSON-Format

Data and Resources

Additional Info

Field Value
Identifier DOI:10.1594/PANGAEA.889727
Project(s) ESA GlobPermafrost
Institute H2O Geomatics Inc.
Publication Date 2018-05-08
Version 1.0
Product Lake Ice Classification
Sensor Sentinel-1
  1. Lake Ice Classification
Variables [Units]
  1. Lake Ice [Classes]: 1 - Grounded ice, 2 - Floating ice
Region Beaufort Sea Region
Spatial Reference EPSG:32604 WGS 84 / UTM zone 8N
Spatial Resolution 19 m
Spatial Coverage Latitude 68.04 to 69.83, Longitude -136.74 to -131.40
Temporal Coverage April, 2015 & 2017
Temporal Resolution Weekly
Format Geotiff
